How a turning roll set actually holds a vessel
A set of welding turning rolls is two powered roller beds on a common centreline. The workpiece sits in the V formed by the rollers, rotation comes from friction drive on the shell surface, and the weld is made along the top of the shell while it turns. It is mechanically simple and, for cylindrical work, it is the most efficient way to keep a circumferential seam in the flat position.
The WR series is the conventional-rotator family in the DESAN turning roll range: a powered drive unit with two rollers and an idler unit that follows, with the roller centre distance set to suit the workpiece diameter. Capacity across the series runs from 5 t to 500 t, with polyurethane or steel rollers and variable-frequency speed control.

The four decisions that matter
1. Roller centre distance and the included angle
The angle the rollers subtend against the shell bottom decides almost everything about how the machine behaves. Too shallow and the shell walks; too steep and the shell climbs, the drive slips and the surface is marked. Conventional rotators are set for a nominal diameter range with the centre distance adjustable in steps; the practical rule is to keep the included angle in a band around 45–60° and to confirm the actual setting against the smallest and largest shell in the shop, not just the average.
2. Roller material
Polyurethane rollers protect machined, painted or stainless surfaces and give good friction on clean plate; steel rollers carry heavier loads and tolerate heat, mill scale and weld spatter. For vessel work in carbon steel, steel rollers with a polyurethane idler option is a common compromise. For stainless or clad shells, polyurethane on both units avoids iron contamination of the surface.
3. Drive configuration
A single powered unit driving through both rollers, with an idler following, is the standard layout. Variable-frequency control lets surface speed be matched to the process — slow for submerged arc, faster for MIG fill — and a digital readout of rotational speed is worth specifying because the operator's job is to hold a constant surface speed, not a constant rpm, as the diameter changes.
4. Axial location
Rotators do not locate the workpiece axially. A vessel on two roller sets will drift along its axis over a long pass, and the weld will walk off the joint line. Thrust rollers, a locating flange or a mechanical stop are required — and on long shells, two stops, because thermal expansion during welding is real and pushes the shell against the stop.
Food, pharmaceutical and hygienic fabrication
Turning rolls in hygienic industries carry requirements that general fabrication does not. Tanks and vessels for food, beverage and pharmaceutical service are usually stainless, often polished, and always inspected for surface contamination afterwards.
- Non-marking rollers. Polyurethane or food-grade elastomer rollers prevent the roller contact bands that steel rollers leave on polished shell.
- Cleanable frames. Painted carbon steel frames with crevices and open bolt heads are hard to clean. Where the machine sits in a washdown area, frames are specified painted to a cleanable finish with sealed drives.
- No iron contamination. Rollers and tooling that have previously run carbon steel transfer iron to stainless surfaces, which becomes a corrosion initiation site after passivation. Dedicated rollers or thorough separation are the practical fix.
- Low-speed stability. Thin-wall stainless shells distort easily and need low, smooth rotation without stiction. A VFD with good low-speed torque control matters more here than on a 50 mm carbon steel shell.

Setting up a rotator pair on site
The most common installation problem is not the machine — it is the foundation and alignment. Both units must sit on a common centreline, level to each other, on a floor that will not settle differentially under load. A drive unit that is 5 mm out of line with its idler will produce a shell that runs out of true, and no amount of drive tuning fixes it. Grout the baseplates, check the centreline with a laser or a taut wire, and re-check after the first loaded run.
Second most common: welding current return. The return path must go through a proper brush or slip ring. Returning welding current through the roller bearings destroys them and destabilises the arc.
What is standard, and where the PU roller boundary sits
Two specification details are worth knowing before comparing quotations on rotators, because they appear as options on some machines and as standard on others.

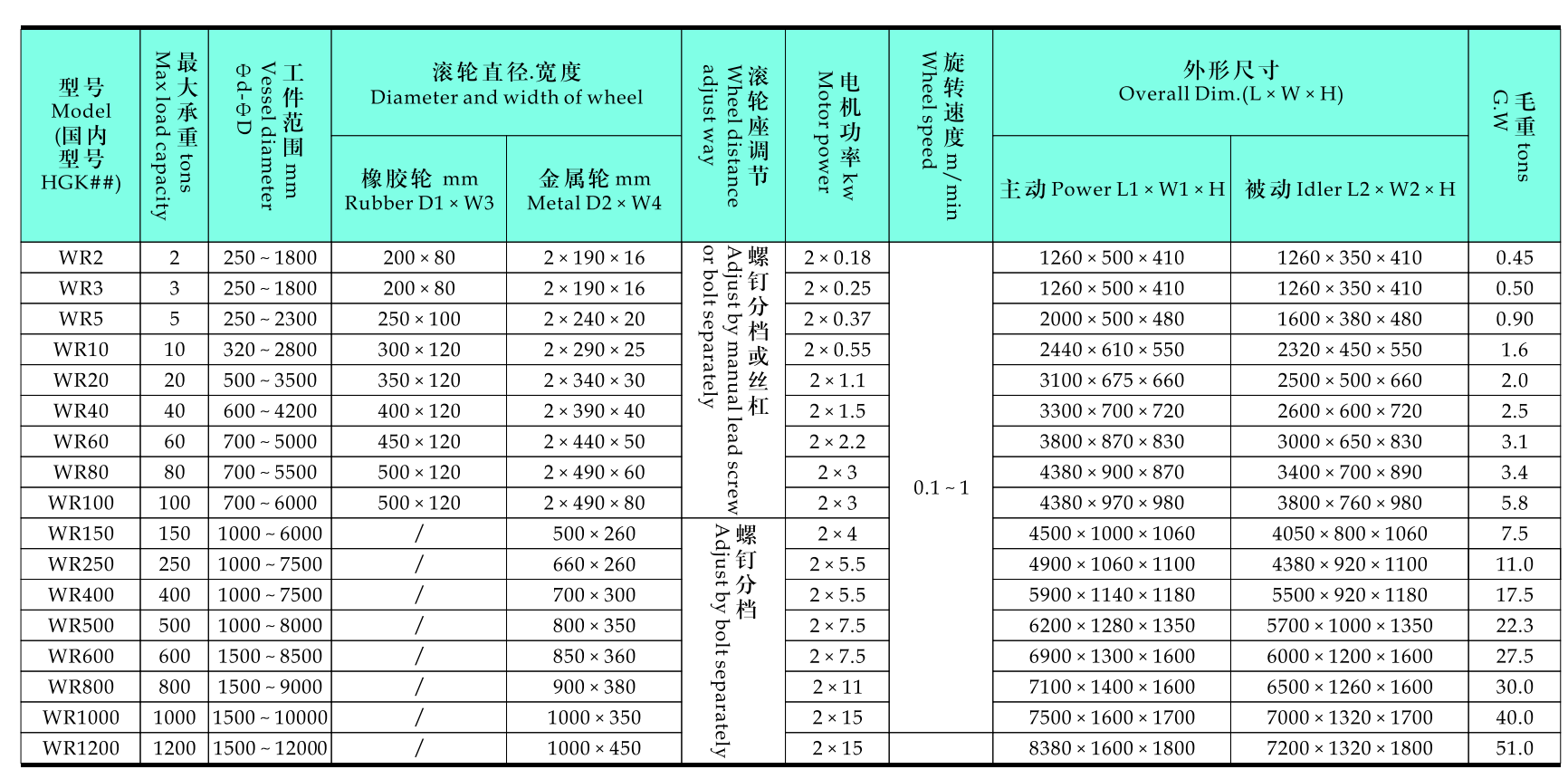

| Item | Standard on the DESAN WR range |
|---|---|
| Variable rotation speed | 100 – 1,000 mm/min, stepless |
| Remote control box | Included, 6 – 12 m span — digital speed display in mm/min, forward/reverse, stop |
| PU roller wheels | Standard on WR-100 and smaller models; PU adopted across the range from 2020 |
| Frame finish | Shot blasted to SA 2½ before painting |
| Large-diameter vessels | LD variant, built to the vessel diameter |
The PU roller boundary is the one that catches buyers out. Polyurethane protects machined and polished surfaces, so it is wanted on stainless and clad vessels — but on a unit rated above 100 t the contact pressure is high enough that steel rollers are the honest choice, and a quotation offering PU at 200 t should be questioned. Below that, PU on the drive unit and steel on the idler is a common and sensible split.
The remote box being standard rather than an extra is also worth noting. A rotator operated from a fixed panel forces the welder to walk to the machine to change speed mid-pass; a pendant with a digital mm/min readout lets them set surface speed and hold it, which is the whole point of a variable-speed drive.
Specifying a WR rotator set
To quote a rotator set we need: workpiece diameter range, maximum workpiece weight, shell length, wall thickness and material, the welding process and required surface speed range, the roller material preference, and the shop power supply. Send the vessel drawing and the heaviest and lightest shells to be run and we will confirm the roller centre distance, drive rating and roller material.
Minimum order quantity is 1 set. Standard rotators ship in 30–50 days after deposit; custom sets are scheduled in the technical proposal. Payment terms are T/T; trade terms are FOB, FCA or CIF. Core ranges are CE compliant and supplied against a certificate of compliance.
Turning rolls are supplied under the DESAN brand, positioners and manipulators under BIQEE, and combination welding machines under ZAULUX — all quoted and contracted by DESAN ELECTRIC LTD, which has served 1,000+ customers in 20+ countries over 20+ years with welding engineering experience since 1997. For self-aligning and high-capacity vessel applications, see the SAR self-aligning rotator range.
