The Visual Perception Revolution in Welding Robots

Late night in a traditional welding workshop

A master welder, flashlight in hand, repeatedly adjusts the position of a workpiece on the fixture, sweat beading on his forehead. Beside him, a welding robot repeats its programmed trajectory like “an elephant feeling its way in the dark” — even if the workpiece deviates by 0.5 mm, it will only “faithfully” weld in the wrong position. The next day, the quality inspector finds deformation and undercut… rework, scrap, delayed delivery.

Morning in the same workshop today

Newly arrived workpieces are placed at random; the robot takes a “glance,” automatically corrects its path, and welds precisely. The operator sees real-time weld pool images and seam trajectory curves on the control screen — everything is under control. What changed all this?

The answer: the welding robot’s “eyes.”

Vision Technology: The “Smart Eyes” of Welding Robots

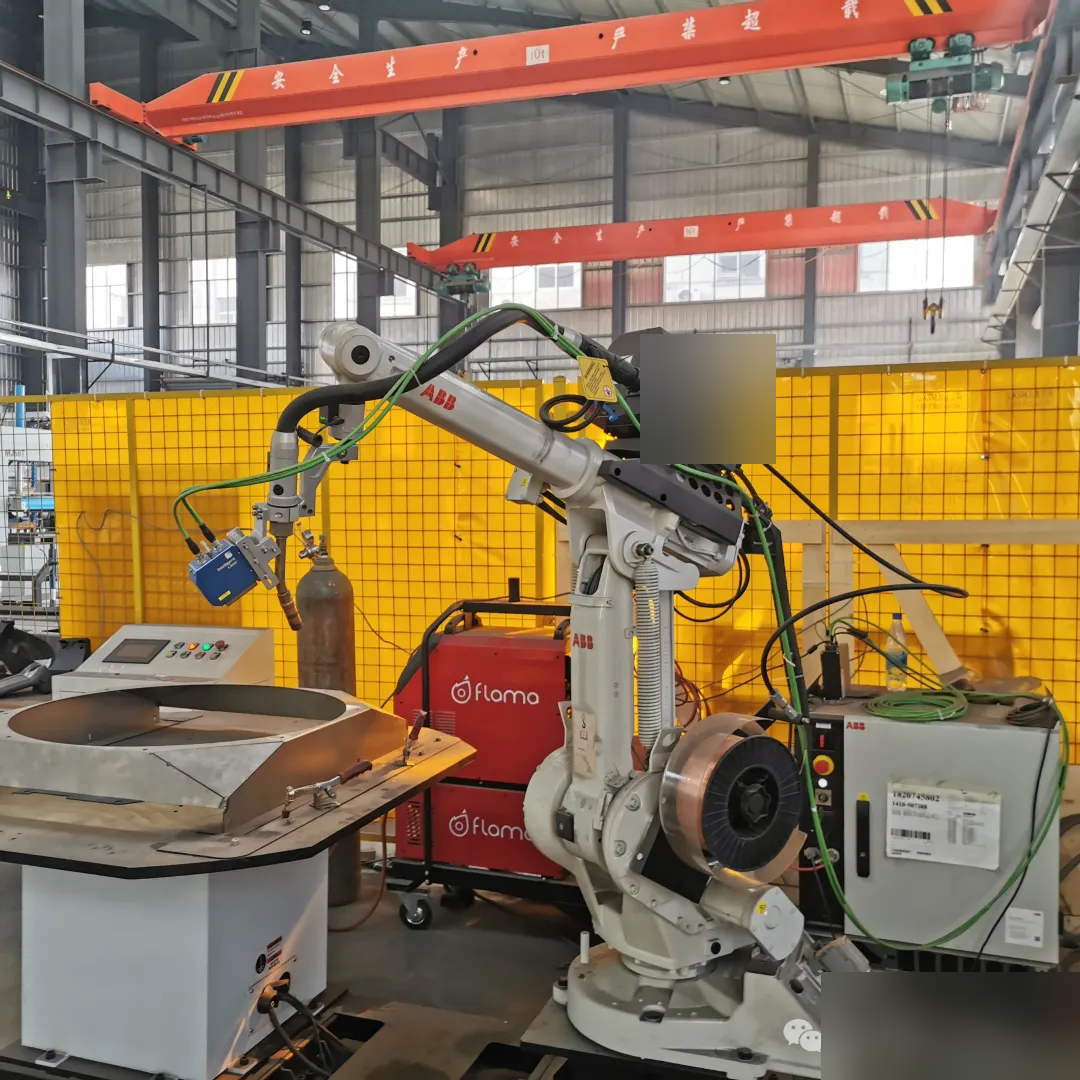

The vision system of a welding robot mainly acquires images of the welding area through devices such as laser vision sensors and CCD cameras, then extracts weld seam feature information through image processing algorithms, ultimately achieving automatic weld seam recognition, tracking, and positioning.

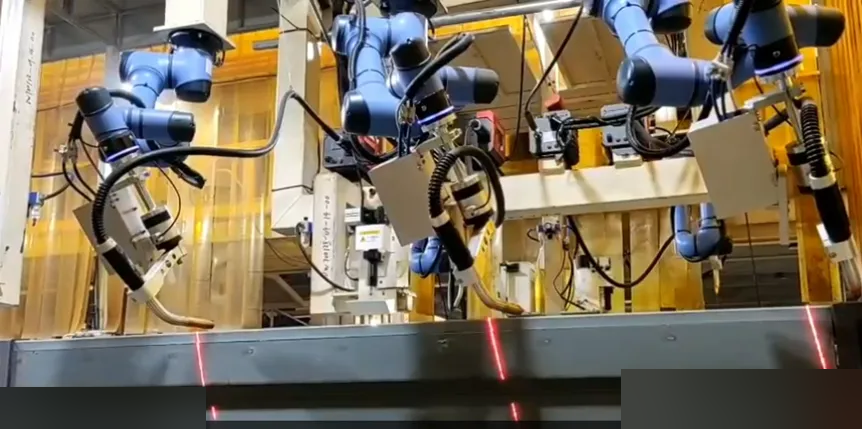

The current mainstream technologies fall into three major directions: 2D vision positioning, 3D vision scanning, and real-time weld seam tracking. 2D vision is mainly used to identify the position and type of weld seams; 3D vision can obtain information on the depth and cross-sectional shape of weld seams; real-time tracking technology dynamically adjusts the robot’s path during the welding process to ensure welding quality.

Market Demand: High Efficiency, High Quality, High Flexibility

As the manufacturing industry undergoes transformation and upgrading, the market has placed higher demands on welding:

Higher precision requirements: Fields such as aerospace and new-energy vehicles have extremely high requirements for welding quality, which traditional manual welding struggles to meet;

Increasing cost pressure: Labor costs continue to rise, and enterprises urgently need automated solutions to reduce long-term costs;

Small batches, multiple varieties: Modern manufacturing orders are characterized by small batches and multiple varieties, requiring welding systems to have rapid changeover capability;

Special environment requirements: In harsh environments such as high temperature, toxic atmospheres, or confined spaces, robotic welding has clear advantages over manual welding.

Application Value: Solving Industry Pain Points

The application of vision technology to welding robots is delivering multiple benefits:

Improved production efficiency: Vision systems enable automatic weld seam recognition and positioning, reducing manual teaching time and increasing the robot’s effective working time by 30%–50%;

Guaranteed quality consistency: Real-time seam tracking and adaptive control technologies ensure the optimal match between welding parameters and process requirements, significantly reducing the defect rate;

Enhanced production flexibility: Vision systems allow robots to quickly adapt to different workpieces and seam types, easily enabling mixed-line production;

Reduced dependence on skilled workers: Vision technology simplifies robot programming and operation, alleviating the shortage of skilled welders;

Digitalized management: Vision systems can record welding process data in real time, providing a basis for quality traceability and process optimization.

Conclusion

Vision technology is moving welding robots from “blind welding” to “visible welding” and from “programmed” to “intelligent.” This not only improves welding quality and efficiency but is also transforming the way the entire welding industry works and the mode of human-robot collaboration. As the technology matures and costs decline, intelligent welding robots will no longer be the preserve of large enterprises alone; small and medium-sized enterprises will also be able to enjoy the dividends of the technology. Welding robots empowered by vision technology are becoming an important driving force in the transformation and upgrading of China’s manufacturing industry.
