Cradle positioners: rotating a tank shell without lifting it onto a table
A cradle positioner supports a cylindrical or barrel-shaped workpiece on two powered roller sets and rotates it about its own axis. Where a tilting table positioner has to be loaded by crane and clamped to a worktable, a cradle machine lets the shell sit in the rollers where it already is — which is why cradle machines dominate tank, vessel and drum fabrication where the workpiece may weigh tens of tonnes and cannot be safely transferred onto a table.
The CWP3 and DWP3 are two members of the same cradle family, supplied under the BIQEE positioner range. CWP3 is the standard cradle weld positioner for oil tanks, drums and general cylindrical fabrication. DWP3 is the elevating cradle variant: the cradle frame rises and falls so the working height at the top of the shell stays at the operator's comfortable level as the shell diameter changes, instead of forcing the welder to work overhead on small shells or crouch for large ones.

Why a cradle instead of a table
| Consideration | Cradle positioner | Tilting table positioner |
|---|---|---|
| Workpiece geometry | Cylindrical, conical, barrel-shaped | Any geometry with a flat or clampable face |
| Loading | Set down into the rollers by crane | Lifted and clamped to the table |
| Practical size limit | Large — limited by roller span, not by table torque | Medium — table diameter and tilt torque set the limit |
| Access to the seam | Seam stays at a constant height on top of the shell | Seam position changes with tilt angle |
| Best for | Circumferential welding of shells, dished ends, rings, drums | Flange work, pipe spools, structural parts |
The practical consequence is that a cradle machine keeps the weld in the flat position for the whole circumference. The torch sits on top, the shell turns underneath it, and the operator works in the same posture for the entire pass — which is what makes a consistent bead on a 3 m diameter shell possible at all.
How the cradle drives and supports the load
Two powered roller sets, mounted in a common frame, carry the workpiece. Rotation comes from a geared motor through a variable-frequency drive, so rotational speed can be matched to the welding process: slow and steady for submerged arc, faster for MIG cladding where dilution control matters more than deposition.
Three details decide whether a cradle machine works in practice:
- Roller geometry. Roller diameter, material and centre distance are selected against the shell diameter and surface condition. Polyurethane rollers protect painted or machined surfaces; steel rollers carry heavier loads. The included angle between the rollers and the shell bottom is the single biggest factor in whether the shell turns smoothly or climbs out of the cradle.
- Anti-drift and anti-rotation. A shell on two rollers has a natural tendency to walk axially. Axial location — thrust rollers or a locating flange — has to be provided, otherwise the weld drifts off the joint line over a long pass.
- Earthing and current return. On a rotating workpiece the welding current return path has to pass through a proper slip ring or brush assembly. Returning current through the roller bearings degrades the bearings and produces an unstable arc.
What the elevating (DWP) version adds
On the DWP3 the cradle frame is raised and lowered, normally by a hydraulic cylinder or a screw jack with a self-locking nut. Two benefits follow. First, the working height at the seam stays constant across a range of shell diameters, which is an ergonomics and weld-quality issue at the same time — an operator working overhead welds differently from one working at chest height. Second, a low cradle position lets the crane set the shell down without the shell having to pass over the cradle frame, which matters when the available crane height is limited.

Where cradle positioners are used
- Oil tanks, fuel tanks and storage drums — circumferential seams on shells and dished ends.
- Pressure vessels and boilers — shell courses where the longitudinal and circumferential seams alternate.
- Chemical and process equipment — reactors, columns, and jacketed vessels.
- Engineering machinery — hydraulic reservoirs, cylinders and large rollers.

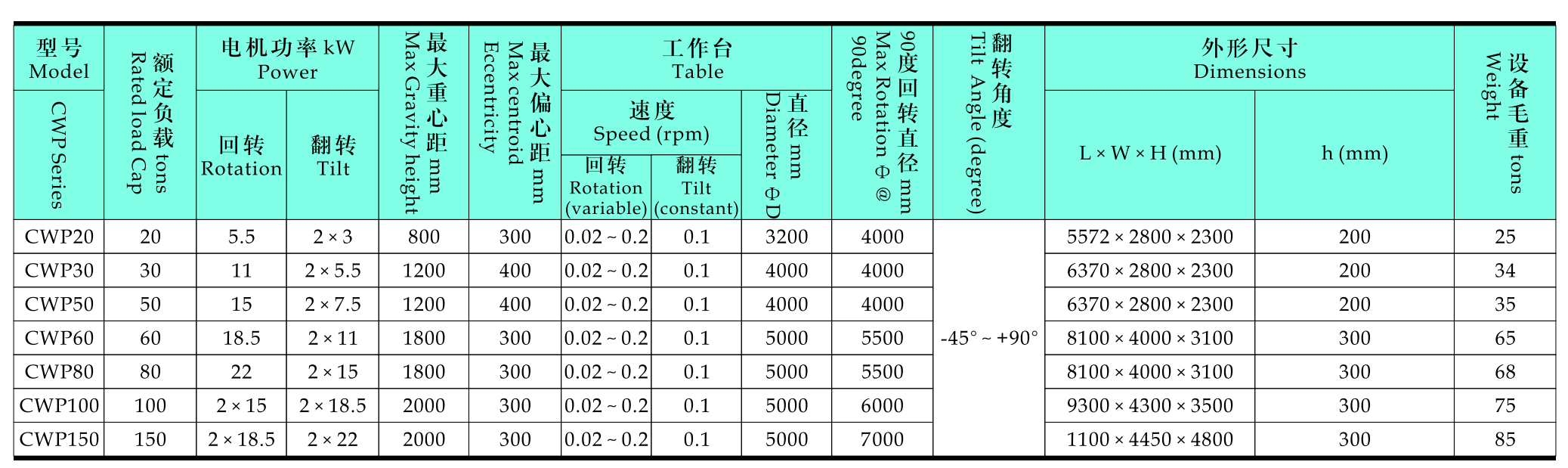

Specifying a CWP3 or DWP3
Cradle machines are sized from the workpiece, not from a tonnage number alone. To quote the right configuration we need: shell diameter range and length, workpiece weight, wall thickness and material, the welding process and whether both circumferential and longitudinal seams will be run on the machine, whether the shop floor is level and what crane capacity is available for loading. Positioners in the BIQEE range cover table and cradle capacities from 0.5 t to 100 t; the exact rating for a specific cradle is confirmed against the workpiece drawing before quotation.
Minimum order quantity is 1 set, with custom and turnkey lines quoted per project. Standard models ship in 30–50 days after deposit. Payment is T/T; trade terms are FOB, FCA or CIF. Core ranges are CE compliant and supplied against a certificate of compliance.
